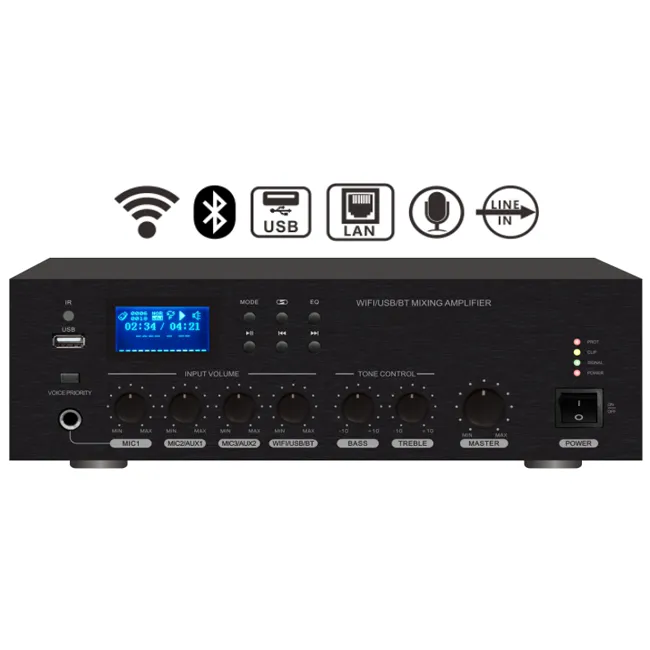

Product Overview
At YZ AUDIO, we offer the Mini WIFI Bluetooth USB Mixer Amplifier for integrators and distributors who need a compact 60W source-and-amplification solution for everyday background music and occasional paging. Rather than combining a separate music streamer, media player, microphone mixer and power amplifier, this unit brings WiFi streaming, Bluetooth reception, USB playback and microphone inputs into one enclosure. It is designed for small and medium indoor commercial spaces where equipment-room space and operating simplicity matter.
The mixer amplifier provides both 70V/100V constant-voltage outputs for distributed speaker lines and 4Ω/8Ω low-impedance connections for appropriate local loudspeaker configurations. Input-level controls, master volume, bass and treble adjustment allow an installer to balance announcements against program audio. Microphone 1 priority helps staff deliver messages without manually changing sources. A 60W rating makes load calculation essential: the combined speaker tap wattage must stay within the amplifier's allowable output budget, with engineering headroom.
This model is a single-amplifier solution, not a verified independently controlled multi-zone matrix. For separate zone selection or independent room volume, ask our team about external zone controls or a dedicated multi-zone model.

Request a Quote for Mini WIFI Bluetooth USB Mixer Amplifier today
Key Features
- 60W distributed-audio output - A documented 60W rated output supports carefully sized background-music and paging speaker circuits. Designers should total 70V/100V speaker transformer taps rather than estimate demand from speaker count alone.
- WiFi playback through MUZO - The specified MUZO Wireless Hi-Fi System and MUZO Player app provide a network-music pathway. Check app availability, supported services and current phone operating-system compatibility before project approval.
- Bluetooth and USB source flexibility - Bluetooth reception and a built-in USB player give site operators alternatives when network streaming is unavailable. Wireless range and supported USB capacity have not been documented.
- 70V/100V and 4Ω/8Ω outputs - Constant-voltage lines simplify distribution across several ceiling or wall speakers; low-impedance outputs suit correctly matched local speaker loads. These output modes must not be interconnected.
- Three microphone connections and paging priority - The published feature list specifies three microphone input jacks and priority for Mic 1, supporting staff announcements over music. The unit also lists an XLR Mic 1 connector with 48V phantom power.
- Independent input and master level controls - Individual source-level adjustment, master volume and bass/treble controls help commissioning teams set speech/music balance. They do not establish independently controlled output zones.
- Protection for routine operation - Documented short-circuit, overload and high-temperature protection addresses common installation faults; the feature list additionally mentions peak-current limiting. Correct ventilation and load matching remain necessary.
Contact us to discuss your Mini WIFI Bluetooth USB Mixer Amplifier project
Customization & OEM/ODM Services
YZ AUDIO can discuss OEM/ODM requests for distributors, project contractors and brand owners, subject to engineering assessment and written quotation. Potential customization scopes include front-panel logo artwork, panel color, packaging language, carton labeling and documentation. Requests for different rated power, microphone/input modules, output channels, chassis size or rack format are more substantial design changes; they must be reviewed for electrical safety, heat dissipation, tooling and compliance before acceptance.
For this specific 60W mixer amplifier, the published page does not establish an approved catalogue of alternative channel counts or independent-zone options. We therefore quote such changes only after technical feasibility confirmation. Send your target market, expected annual volume, preferred power and connector layout, branding files, certification requirements and project schedule. Our team can then determine whether a standard configuration, accessory-based solution or separate development project is appropriate.
MOQ is 100 units; sample lead time is 7–15 working days after specification approval. Standard dispatch is 15 business days; customized production is 30 working days. They are confirmed case by case in the formal offer rather than presented as guaranteed numbers. Contact Us with your OEM/ODM brief to receive the applicable MOQ and prototype plan.f
Why Choose YZ AUDIO
We focus on practical commercial-audio procurement: checking speaker loads, identifying required music and paging sources, and reviewing installation constraints before a buyer commits to a model. For this 60W WiFi mixer amplifier, the public product page provides measurable performance and installation information instead of relying on generic promotional descriptions. That allows system integrators to compare output power, line voltage, microphone priority, supply voltage and cabinet dimensions against a real project bill of materials.
Our technical discussion can cover distributed 70V/100V wiring, microphone interface requirements, WiFi commissioning and the distinction between a single mixed output and true multi-zone management. Customers requesting private labeling or electrical modifications should provide a target specification so feasibility, compliance scope and testing can be assessed before a purchase order.
The manufacturing base covers approximately 80,000 m², with 6 production lines and an annual capacity of 100,000 units per year. Responses are provided within 24 hours. Standard dispatch is 15 business days; customized production is 30 working days. Warranty: 1 year; expected service life: 5 years. Exclusions, start date and claim procedure are stated in the written warranty document. CE/RoHS declarations and ISO certificates should be linked only after confirming certificate holder, scope, model applicability and validity. We recommend providing buyers with an approved datasheet, available test records, warranty terms and a dated delivery commitment with each quotation.
Request a Quote to obtain current production availability, sample arrangements, documentation and commercial terms for your destination market.
Application Scenarios
- Retail stores and supermarkets - A 70V/100V speaker line can distribute background music across a compact sales floor; check the 60W tap budget and paging coverage.
- Cafés and casual dining - WiFi, Bluetooth and USB sources give staff music-playback choices, while microphone priority supports brief announcements.
- Small offices and meeting rooms - A wired microphone and local speaker circuit can support simple speech reinforcement; confirm gain-before-feedback and coverage before installation.
- Campus reception or corridor paging - Suitable for a limited paging circuit where power and intelligibility calculations fit; it is not a substitute for a certified emergency voice-alarm system.
- Small event or demonstration area - Useful for modest speech/background-audio needs, but not a verified high-output live-performance amplifier.
FAQ
Q: What is the MOQ for this mixer amplifier?
A: The MOQ is 100 units; it can differ between the standard unit and customized branding. Request a Quote with the destination country and quantity for a written MOQ.Standard dispatch is 15 business days; customized production is 30 working days. Contact Us with your quantity, artwork and delivery destination for a dated schedule.
Q: Can I customize the logo, power rating or input configuration?
A: Logo and packaging requests can be assessed separately from circuit-level changes such as power or input modules. Send your specification and expected volume so our team can confirm feasibility, tooling and approval steps; Contact Us to start.
Warranty: 1 year; expected service life: 5 years. Exclusions, start date and claim procedure are stated in the written warranty document. Ask our sales team for the current written warranty policy before placing an order; Request a Quote for the relevant terms.
Sample lead time is 7–15 working days after specification approval; sample availability and charges are confirmed in the written quotation. Contact Us with your testing requirements to obtain a sample quotation.
Q: Does this amplifier control several zones independently?
A: The published data confirms 70V/100V output, not separately addressable zone outputs. Multiple speakers may share one line, but independent zones require an approved external solution or another model. Contact Us for a zone-by-zone recommendation.
Q: Can it connect to both 100V ceiling speakers and 8Ω speakers?
A: Both output types are listed, but they require different connection and load calculations; concurrent use is not confirmed. Request the wiring diagram and Contact Us for configuration review.
Q: Which Bluetooth version and streaming services are supported?
A: The website confirms Bluetooth reception and MUZO WiFi playback but does not state Bluetooth version or a validated service list. Contact Us for current firmware and compatibility details before specifying the unit.
Specification
|
Parameter |
Value |
|
Rated output power |
60W |
|
Speaker outputs |
70V / 100V constant voltage; 4Ω / 8Ω low impedance |
|
WiFi platform / app |
MUZO Wireless Hi-Fi System / MUZO Player |
|
Wireless specification |
Website states "Wi-Fi8.2.11 b/g/n" [probable typo; verify 802.11 b/g/n]; AP/STA |
|
Phone platform |
Android / iOS stated on product page |
|
Audio sources |
MIC, AUX, USB, Bluetooth, WiFi |
|
Microphone interface |
3 microphone jacks; Mic 1 front 6.35mm and rear XLR; 48V phantom power |
|
Microphone priority |
Mic 1 priority |
|
Music formats |
MP3, WMA, WAV, AAC/AAC+, ALAC, FLAC, APE [website spells ACC] |
|
Frequency response |
55Hz–22kHz (±3dB interpretation requires confirmation) |
|
THD |
<1% at 1kHz, 1/3 rated power |
|
Signal-to-noise ratio |
≥75dB |
|
Tone controls |
Bass 100Hz ±10dB (site notation ambiguous); treble 10kHz ±10dB |
|
Protection |
Short circuit, overload, high temperature |
|
Mains / fuse |
AC 220–240V, 50/60Hz; T1A |
|
Power consumption |
95W |
|
Unit dimensions |
100(H) × 290(W) × 260(D) mm |
|
Carton dimensions |
155(H) × 365(W) × 305(D) mm |
|
Weight |
6.30kg (website does not specify net/gross) |
|
Power cord |
3 × 0.75mm², 1.5m (notation to verify) |
|
Bluetooth version |
To be confirmed with the factory |
|
Independent output zones |
Independent zone control is not claimed; confirm with the factory |
Output power and impedance: The 60W rating sets the upper electrical load budget. A 70V or 100V line distributes audio using speaker transformer taps; 4Ω/8Ω outputs instead require impedance matching. Do not use both output types simultaneously unless the factory wiring diagram explicitly permits it. For continuous operation, confirm recommended headroom and thermal derating with engineering.
Source and microphone architecture: WiFi, Bluetooth and USB reduce external source hardware, while MIC/AUX support announcements and wired playback. Mic 1 priority can duck or override program audio, but the precise attenuation behavior requires testing. Phantom power matters for compatible condenser microphones; confirm whether 48V applies only to the rear XLR connector.
Audio performance: The specified 55Hz–22kHz frequency response indicates published bandwidth, not guaranteed flat response in the installed room. THD below 1% is quoted only at 1kHz and one-third rated power; it should not be extrapolated to full-power distortion. An S/N ratio of at least 75dB helps compare the noise floor, but its measurement reference and weighting are unpublished.
Power and installation: A 95W mains consumption figure is not the same as continuous loudspeaker output. The 220–240V supply range requires regional mains checking; confirm any 110V variant separately. At 100 × 290 × 260mm, verify cabinet clearance, cable access and airflow. The listed 6.30kg needs net-versus-shipping confirmation. Bluetooth version, zone count, network security and app maintenance support are not documented and should not be guessed.
